Mechanics of Stocks and Flows *

1) Create a stock/level accumulation

2) Add a flow/rate

Constant rate
Constant rate with connectors
Rate with feedback

Rate with feedback and policy variable

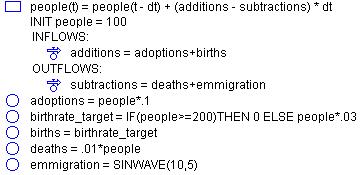

3) Add an outflow

With connectors and simple function

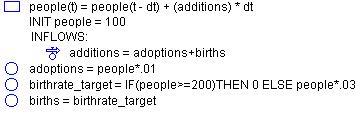

Would there be any difference in the tabular output of the people stock in the following stock and flow diagrams A,B?
