A Primer on Artificial Intelligence Technologies

Artificial Intelligence (AI) could be defined as the ability of computer software and hardware to do those things that we, as humans, recognize as intelligent behavior.Traditionally those things include such activities as:

         Searching: finding “good” material after having been provided only limited direction, especially from a large
         quantity of available data.
         Surmounting constraints: finding ways that something will fit into a confined space, taking apart or building a
         complex object, or moving through a difficult maze.
         Recognizing patterns: finding items with similar characteristics, or identifying an entity when not all its
         characteristics are stated or available.
         Making logical inferences: drawing conclusions based upon understood reasoning methods such as deduction
         and induction.

AI technologies extend from the word Technology which stems from the Greek word technos, which means "art" and "skill." A sophisticated technology is then a cumulative building of learned and well-refined skills and processes. In the AI area, these processes have manifested themselves in a number of well-recognized and maturing areas including Neural Networks, Expert Systems, Automatic Speech Recognition, Genetic Algorithms, Intelligent Agents, Natural Language Processing, Robotics, Logic Programming, and Fuzzy Logic.

Each of these areas will be examined in some depth here, but it is first important to understand that the importance of these individual areas has changed over the last two decades. These changes have been based upon the progress in each area, and the needs that each area meets. For example in the early 1980’s robotics was a large thrust in artificial intelligence. At that time benefits could be seen in manufacturing applications. In the late 1990’s the blossoming of the Internet pushed the importance of intelligent agents forward for performing routine tasks and complex searches. At the same time, throughout the 1980s and 1990s, orders of magnitude advances in computer processing power have allowed hurdles in speech recognition and image processing to be overcome.

The maturity of each of these technology areas also differs. Expert Systems and Automatic Speech Recognition are among the most mature while Natural Language Processing and Intelligent Agents remain in early stages of development. In the next few paragraphs the basis for each of these technologies will be reviewed. In addition examples where the technologies have been effectively utilized will be presented.

The Neural Network

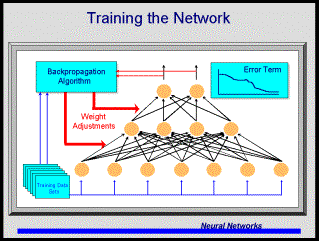

This technology is based loosely upon the cellular structure of the human brain. Cells, or storage locations, and connections between the locations are established in the computer. As in the human brain, connections among the cells are strengthened or weakened based upon their ability to yield "productive" results. The system uses an algorithm to “learn” from experience. Using a tree identification system as an example, the diagram and process below demonstrates how a simple neural network operates. The outputs (top 2 circles) of this system are tree types - conifer (left circle) and deciduous (right circle). The inputs (bottom 7 circles) are tree characteristics such as color, shape, leaf type, bark type, etc.

                                                     diagram courtesy Dr. Bill Hodson

1) From a training set, a single example's characteristics, e.g. dark green, triangular, needle, and scaly are fed into the bottom of the system. Typically each of the many characteristics are identified simply as a 0 or a 1, where for example the first characteristic, color, a 0 would mean dark green and a 1 would mean light green.

2) In the middle layer shown above, the 0's and 1's are combined and pushed up through the system using summation and transfer algorithms.

3) Upon reaching the top a 1 would appear in the left circle, identifying a conifer or a 1 would appear in the right circle, identifying a deciduous tree. If the answer was correct, in this case a 1 in the left circle, the connection strengths would be increased. Weights would be adjusted upward. If the answer was incorrect, in this case a 0, the connection strengths would be decreased.

4) This process (1-3 above) is repeated many times, using a different case, e.g. light green, circular, broad leaf, and smooth each time.

Eventually the error, that is producing a zero as an output when it should be producing a one, is reduced to a state where it is almost always “right.” This is the learning that takes place. After sufficient learning, it has the ability to identify or classify “similar” cases - although it may have never seen the combination of characteristics before. It has “stored” the knowledge of the examples it has seen. Neural nets are an inductive reasoning method.

Neural Networks are used today for helping to identify the presence or absence of certain types of explosives in checked airline baggage. As the baggage passes through a special scanner, the scanner “sniffs” out the explosives by bombarding the luggage with harmless atomic level particles. The system then passes the pattern produced through the neural network that has been trained to see the peculiar patterns of the explosives.

Expert Systems

These systems are usually built using large sets of “rules.”An expert, who has developed them mentally after perhaps a decade or more of practice in a specialty area, establishes these rules. A specialist, known as a knowledge engineer, extracts the rules from the expert and programs them into a computer. An example of a small rule set follows.

IF the relief pressure valve is less than .25 open and the pressure setting is greater than 160 kg,
    THEN pressure-category is high.
IF then temperature is less than 250 centigrade,
    THEN category is normal,
    ELSE temperature-category is hot.
IF pressure-category is high and temperature-category is hot,
    THEN send operator alert.
Expert Systems are established for processes where there is a need;

       1) for a narrow area of expertise to be more widely known, or
       2) to allow sophisticated processes to be run without human intervention.

A classic example of the former is a need for understanding and interpreting the rules of code and regulations set forth by the U.S. Internal Revenue Service.  To provide benefit to the average citizen preparing their taxes, these rules are programmed into popular software packages such as Tax Cut and TurboTax. A classic case of the second need is a back end system programmed by the Credit Card Division of the American Express Company. This system uses sophisticated rules to determine whether a credit transaction should be approved, denied, or be interrupted by human intervention.

Automatic Speech Recognition (ASR)

This technology takes the sound waves produced by our speech and converts them into text content. The process, made possible by lots of computer memory and fast processors, works like this:

For this process to work, the system must first be trained to recognize your specific voice. It does this by asking you to speak a series of simple phonemes, or parts of speech. After about 30 minutes of training, the system can then begin to derive complex speech patterns from the simple ones you have provided. The methods used to derive and select from the large numbers of patterns are quite sophisticated. They borrow from techniques such as Markov Processes, which used probabilities to determine what the most likely next syllable or word may be, or from Neural Networks. The ASR technology would likely be of use to anyone who needs to utilize a computer. However it is most beneficial to those who find it difficult to use a keyboard, such as people suffering from Carpal Tunnel Syndrome or those who need hands free access on a manufacturing line.

Genetic Algorithms

To evaluate and locate the best candidates for a task, the Genetic Algorithm (GA) has been found to be a very effective method . GA's borrow from scientific discovery about the evolutionary nature of our genes. They utilize fitness functions, which are relationships among criteria, to grade candidates. They also use evolutionary methods such as crossover and mutation on chromosomes, or strands of information, to find the best examples from a very large field of possibilities. This amazing technology provides the capability to find a needle in a haystack. GA's use a method known as abductive reasoning. This method boils down to sophisticated trial and error.

How does a detail genetic algorithm process work? It follows 5 simple steps

    1. evaluate the population against "high fitness" criteria;
    2. if a candidate in the population meets the criteria stop, else
    3. select the best of the current set using a selection strategy and diversity maintenance, then
    4. reproduce using crossover & mutation, and
    5. return to 1

Population - candidate/possible solutions to a problem
Selection Strategy - strategy for selecting chromosones to move forward in current cycle
Diversity Maintenance- strategy for assuring that generations do not get caught in local minima
Crossover - part of one chromosone is combined with another through mating
Mutation - random alteration of a gene
High Fitness Criteria - an "ideal" candidate

Genetic Algorithms have been used to help police work with witnessess to quickly narrow down the possible perpetrators of a crime. They use a system known as FACEPRINTS. Manufacturers, such as Deere and Company, utilize GA's to help them set up schedules that combine a large and complex set of constraints. And General Electric has used a GA approach to help them tune aricraft engines, which can lead to a significant increase in efficiency.

Intelligent Agents

Intelligent agents (IA), now often known as "bots", are software technology that performs difficult or repetitive tasks for a user. Using direct commands or on a scheduled timetable, the IAs execute a provided list of instructions known as a script. The intelligent agent technology typically “borrows” from capability inherent in other AI techniques, especially in the area of search. The IA capability can then add the “ever diligent” capability provided to us by computer processors that can stay awake and work 24 hours a day 7 days a week. A simple script follows that checks for stories about the stock market and then notifies the user via e-mail when one of interest appears.

When HOUR = (11:00 or 13:00 or 15:00 or 16:30)
   Start ieexplorer.exe
   Load URL = http://www.msn.com
   Search site for text = "DJIA"
If present THEN
   Start outlook.exe
   Address = saunders@ndu.edu
   Subject = "Story on Dow Jones Industrial Average"
   Body = "At HOUR There was a story on the DJIA posted on the MSN Web site. Click here to retrieve it"
Else END
Scripts that are well crafted can perform actions such as periodically:
Checking for a stock price to hit a certain level and then executing a buy or sell at that price.
Checking a web site to see if any new documents have been deposited.
Intelligent agents take many forms. The web site http://www.botspot.com lists the following general categories

 Chatter Bots              Commerce Bots                 Data Mining Bots
 E-Mail Bots               Fun Bots                           Game Bots
 Government Bots       Knowledge Bots                Miscellaneous Bots
 News Bots                Newsgroup Bots                 Search Bots
 Shopping Bots           Software Bots                     Stock Bots



    PC AI Magazine  http://www.pcai.com/pcai/
    American Association for Artificial Intelligence http://www.aaai.org/

Specific Area Links

    Expert Systems http://users.erols.com/jsaunders/guides/experweb.htm
    Neural Networks http://users.erols.com/jsaunders/guides/nn.htm
    Genetic Algorithms http://users.erols.com/jsaunders/guides/ai.htm
    Intelligent Agents http://users.erols.com/jsaunders/guides/agents.htm

Mini Quiz

Now that you have read about each, can you match the technologies to the type of task they are best suited?
 ____ Neural Networks,
 ____ Automatic Speech Recognition,
 ____ Natural Language Processing,
 ____ Genetic Algorithms,
 ____ Expert Systems,
 ____ Intelligent Agents,
 ____ Robotics,
 ____ Logic Programming
 ____ Fuzzy Logic
a. Searching
b. Surmounting constraints
c. Recognizing patterns
d. Making logical inferences

Answers. c.,c.,a.,b.,d.,a.,b.,d.,d.

(c) May 2000 John H. Saunders
